1. Price: ¥128
2. Product Specification: DN10-DN3000
3. Measurement Grade: Class 0.5
4. Display Mode: LCD Digital
5. Working Pressure: 1.6-4.0MPa
6. Overload Flow: 1.5Qmax

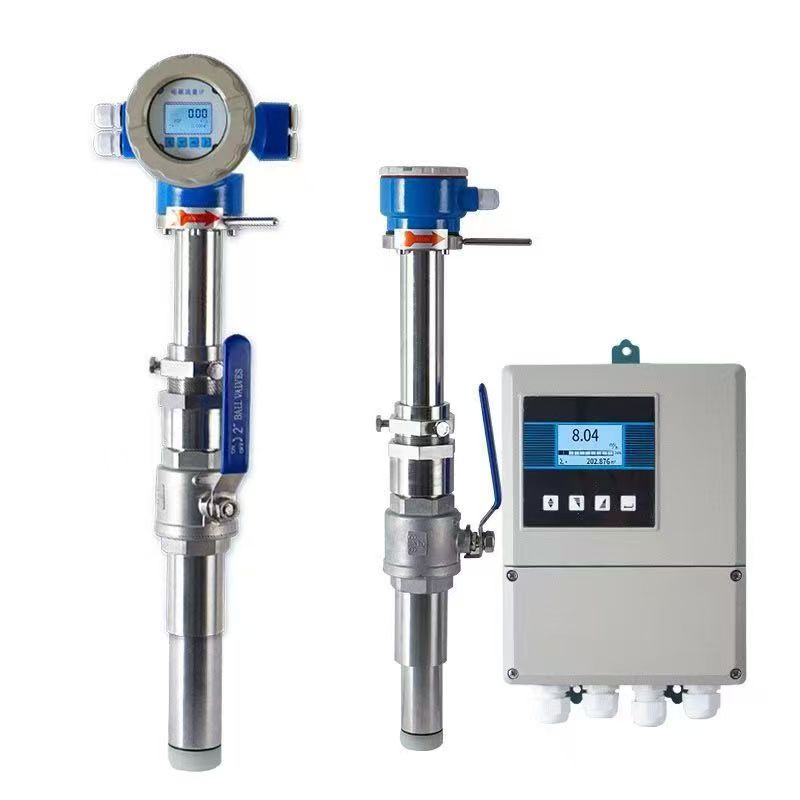

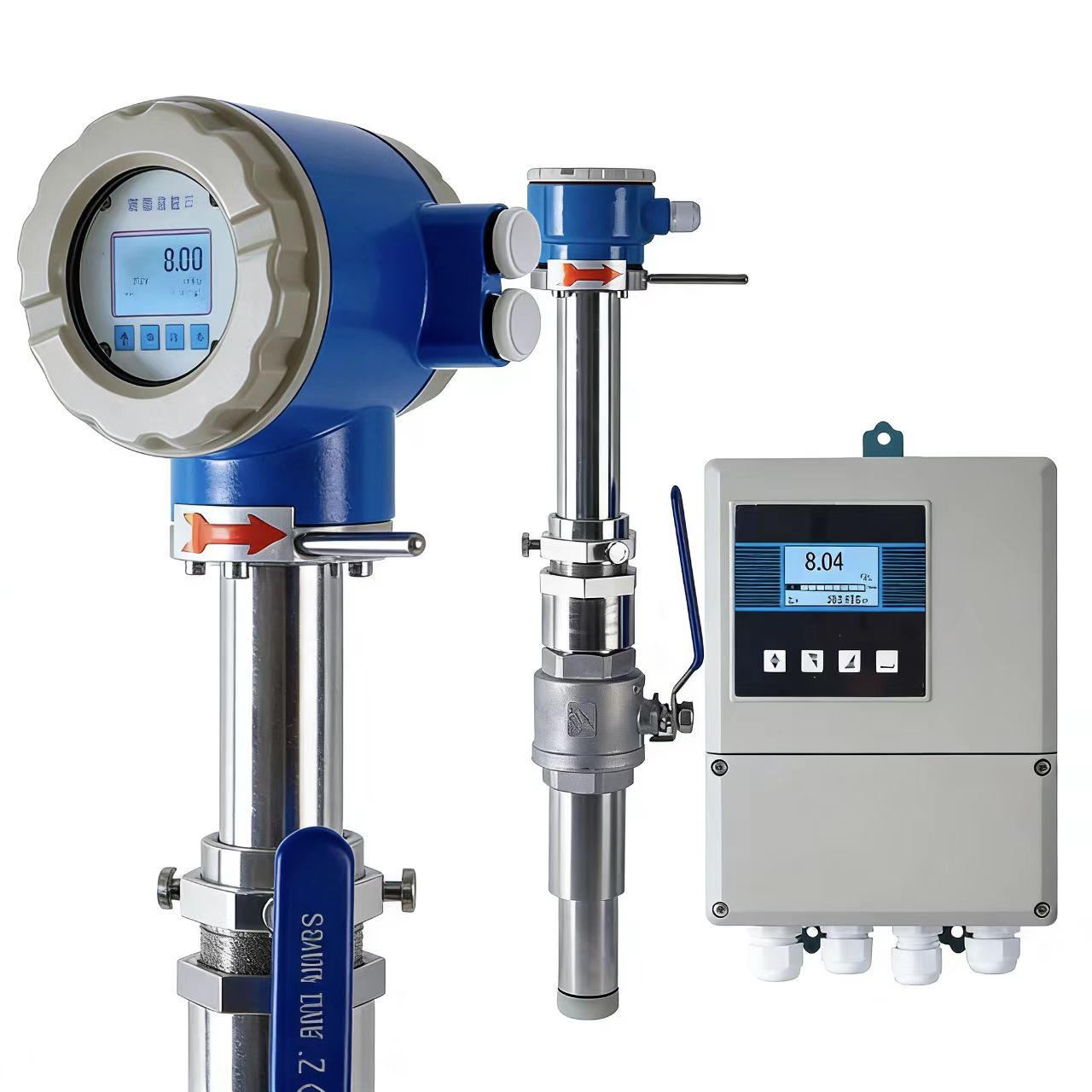

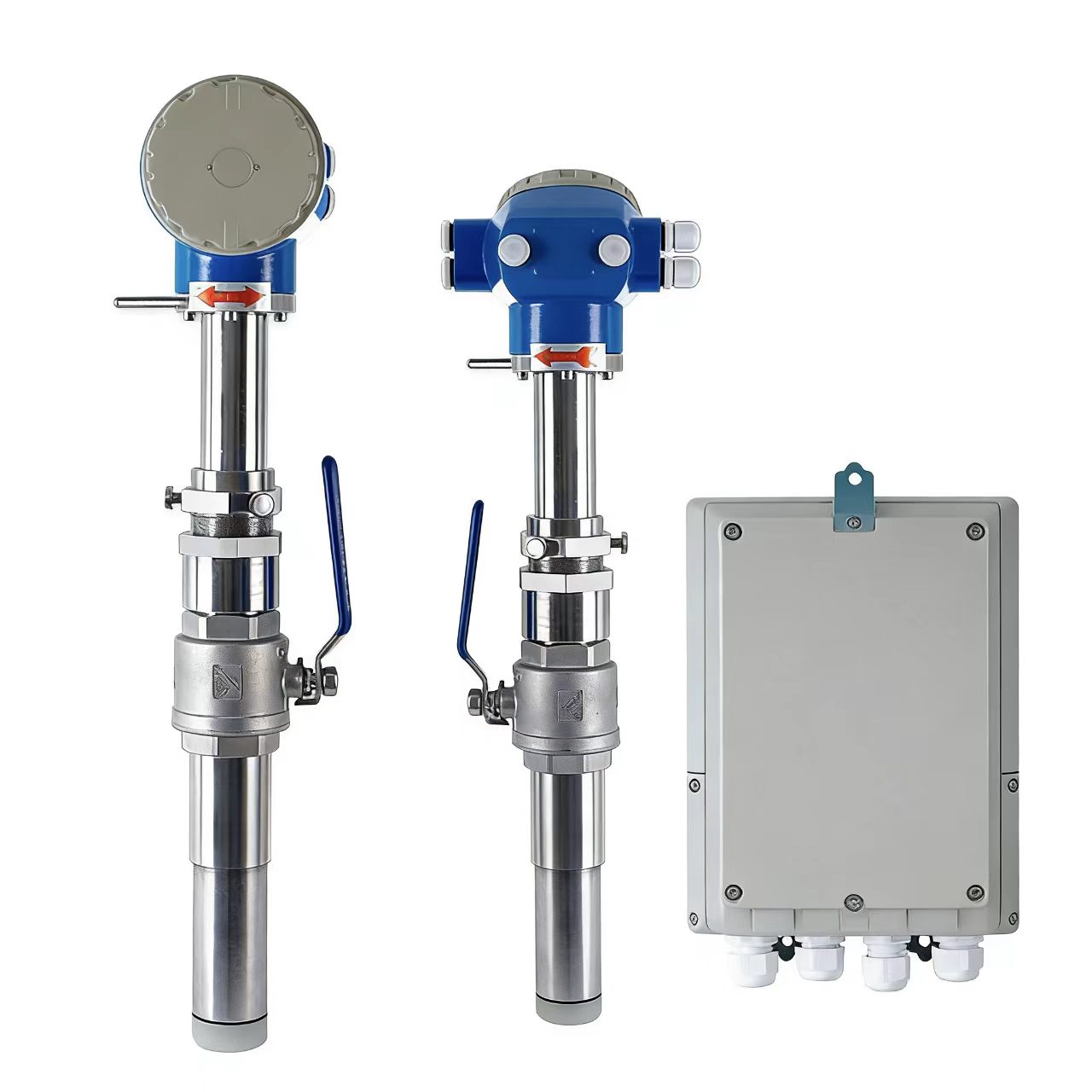

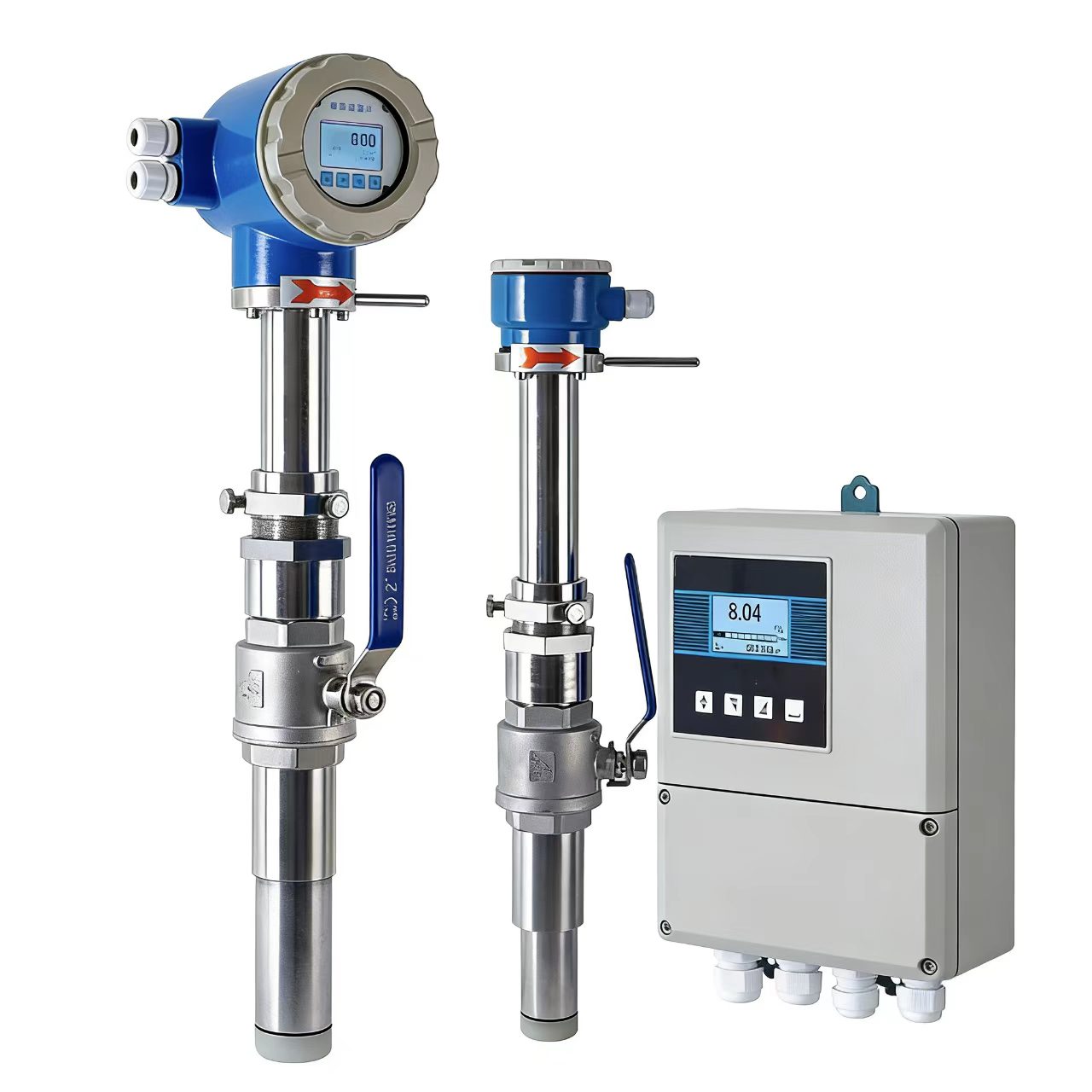

This cutting-edge electromagnetic water meter features no moving parts, eliminating pressure loss and ensuring minimal maintenance. Its high accuracy and strong adaptability to various media make it ideal for industrial, municipal, and environmental applications. By delivering precise flow data, it supports optimized production processes and effective water resource management.
Performance
1. No Pressure Loss, Stable Measurement: Adopts electromagnetic induction principle with no internal moving parts, eliminating pressure loss. It is unaffected by medium viscosity or density, maintaining high measurement accuracy of ±0.5% even in high-viscosity, impurity-containing sewage conditions.
2. Strong Anti-interference and Adaptability: Built-in anti-electromagnetic interference circuit resists strong electromagnetic interference in industrial environments. It supports bidirectional flow measurement, adapts to fluid direction changes, and features self-diagnosis for real-time status monitoring.
3. Low Power Consumption and Long Lifespan: Uses pulse excitation technology with ultra-low static power consumption, powered by batteries or external sources. With no mechanical wear, core components last over 20 years, significantly reducing maintenance and replacement costs.
Application
1. Industrial Process Flow Monitoring: Widely used in chemical, metallurgical, power industries for measuring acid/alkali liquids, slurry, and sewage. It adapts to high-temperature, high-pressure, and highly corrosive conditions, providing precise data for production control.
2. Municipal Water Supply and Wastewater Treatment: Applied in urban water supply mains and wastewater treatment plant influent/effluent metering, accurately measuring large flow rates. It supports zone metering and leakage analysis for efficient municipal water management.
3. Energy and Environmental Protection: Used in thermal power plant circulating water and HVAC systems to measure heating/cooling medium flow, supporting energy accounting and retrofits. It also monitors wastewater discharge for environmental compliance.
Specifications
1. Caliber and Connection: Covers DN10 to DN3000, supporting flange, insertion, and clamp-on installation. It adapts to various pipe diameters and materials, enabling flexible installation without pipeline shutdown.
2. Flow and Pressure Ratings: Nominal pressure ranges from 1.6MPa to 4.0MPa, overload flow reaches 1.5 times nominal flow, and turndown ratio is up to 1:1000, meeting full-range metering from micro to large flows.
3. Material and Protection: Electrodes use corrosion-resistant Hastelloy or titanium; liners are PTFE or rubber. With IP68 protection, it withstands humid, corrosive, and explosive environments for long-term stable operation.
