1. Price: ¥128
2. Product Specification: DN25-DN6000
3. Measurement Grade: Class 1
4. Display Mode: LCD Digital
5. Working Pressure: 1.6MPa
6. Overload Flow: 1.25Qmax

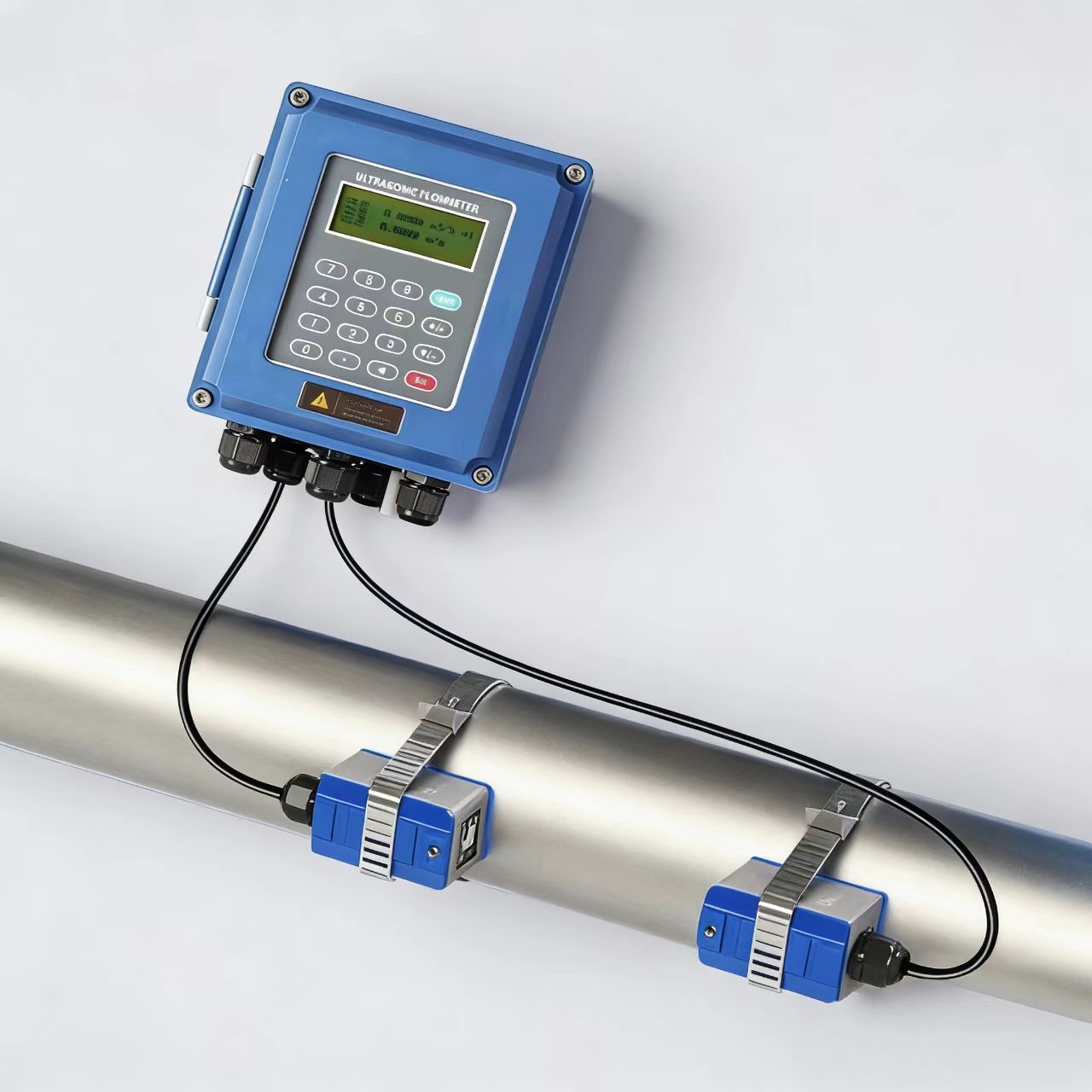

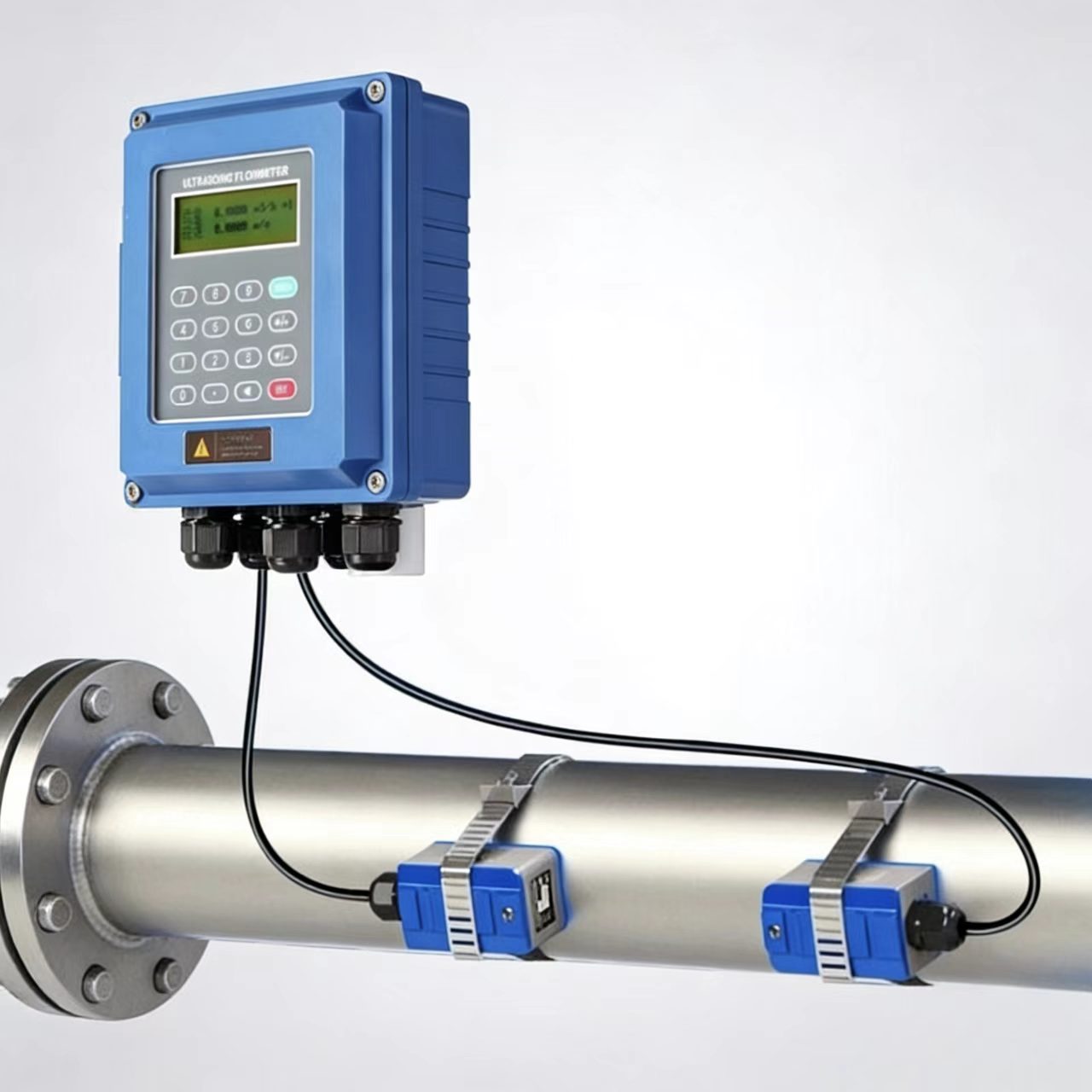

Electronic clamp-on water meter uses external clamp-on ultrasonic measurement, requiring no pipe cutting, with no pressure loss and easy installation. Suitable for old pipeline network renovation, industrial process monitoring, and temporary emergency scenarios, it can accurately measure various media flows and significantly reduce operation and maintenance costs.
Performance
1. Non-contact and No Pressure Loss: Adopts an external clamp-on ultrasonic measurement principle. Sensors are directly clamped to the outer wall of the pipe, eliminating the need for pipe cutting or water supply interruption. With no moving parts, it produces no pressure loss and avoids risks of medium leakage and secondary pollution.
2. Wide Range and High Accuracy: Supports full-range measurement from micro to large flows, with a turndown ratio of up to 1:100. It maintains ±1% metering accuracy even under complex conditions, unaffected by medium viscosity or impurities.
3. Easy Installation and Maintenance: No direct contact with the medium is required; installation takes only a few minutes. Later maintenance does not require water shutdown or pipe disassembly, significantly reducing operation and maintenance costs and construction difficulty, making it ideal for rapid deployment and renovation projects.
Application
1. Old Pipeline Network Renovation: Widely used in urban water supply network zoning metering and leakage monitoring. It can be quickly installed without damaging existing pipes, accurately counting water consumption in each area, and providing data support for network optimization and leak point location.
2. Industrial Process Monitoring: Suitable for measuring acid/alkali liquids, circulating water, sewage, and other media in chemical, power, metallurgical, and other industries. It adapts to harsh conditions such as high temperature, high pressure, and strong corrosion, providing precise data for production process control and energy consumption management.
3. Temporary Monitoring and Emergency Scenarios: Can be quickly deployed in temporary water supply, emergency repair, or engineering testing scenarios. It flexibly adapts to pipes of different diameters and materials without long-term fixed installation, meeting diverse temporary flow monitoring needs.
Specifications

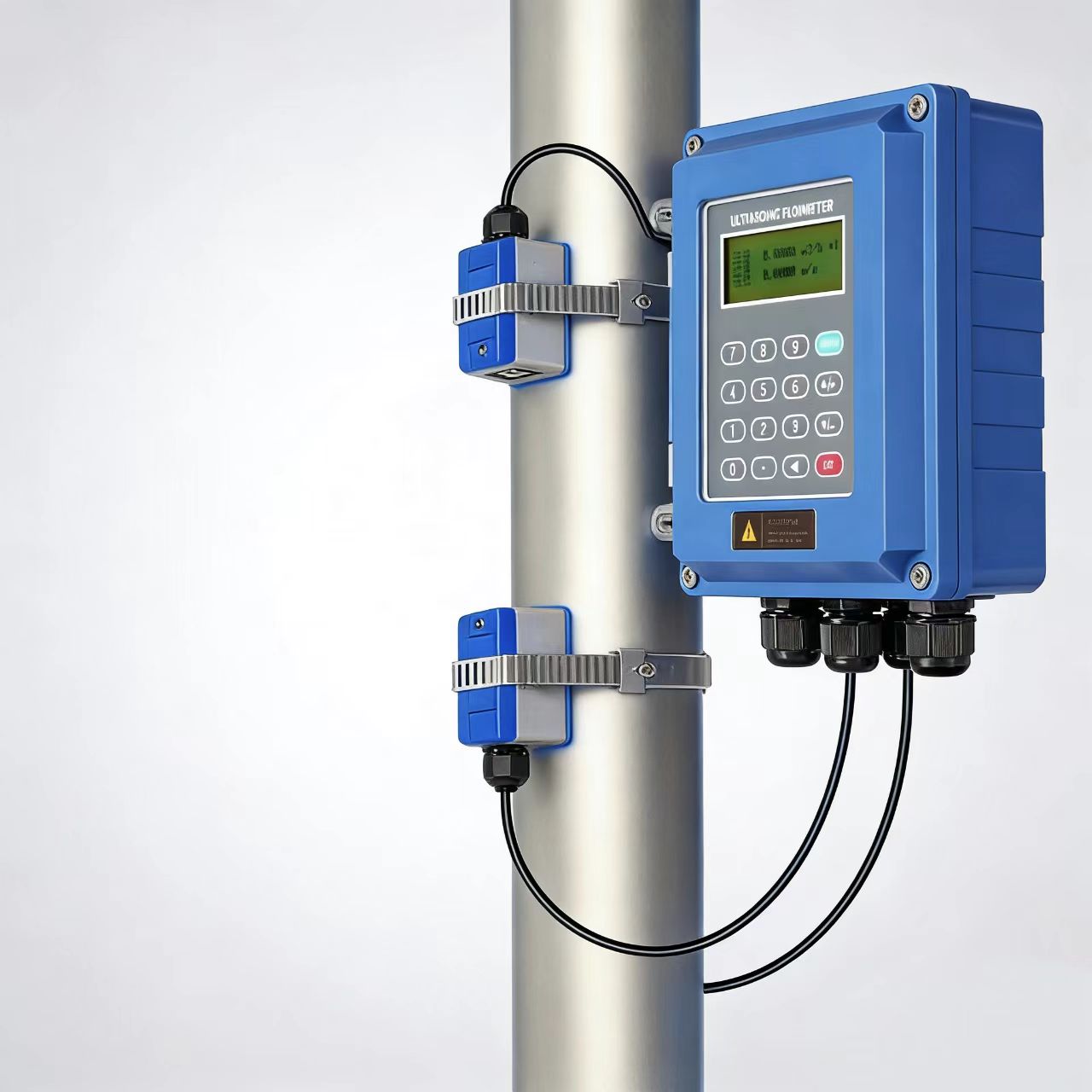

1. Caliber and Installation Method: Supports a full caliber range from DN25 to DN6000, adopting external clamp-on installation. It is compatible with various pipe materials such as steel, cast iron, and PVC, with flexible installation positions regardless of pipe direction and space constraints.
2. Flow and Environmental Parameters: The measured medium temperature ranges from -30℃ to 160℃, the working pressure can reach 1.6MPa, and the overload flow is 1.25 times the nominal flow. It can adapt to various media from low-temperature chilled water to high-temperature steam condensate.
3. Material and Protection Level: The main unit casing is made of aluminum alloy or ABS engineering plastic, and the sensors are made of stainless steel. The protection level reaches IP67, enabling it to adapt to harsh environments such as humidity, dust, and explosion protection, ensuring long-term stable operation.
